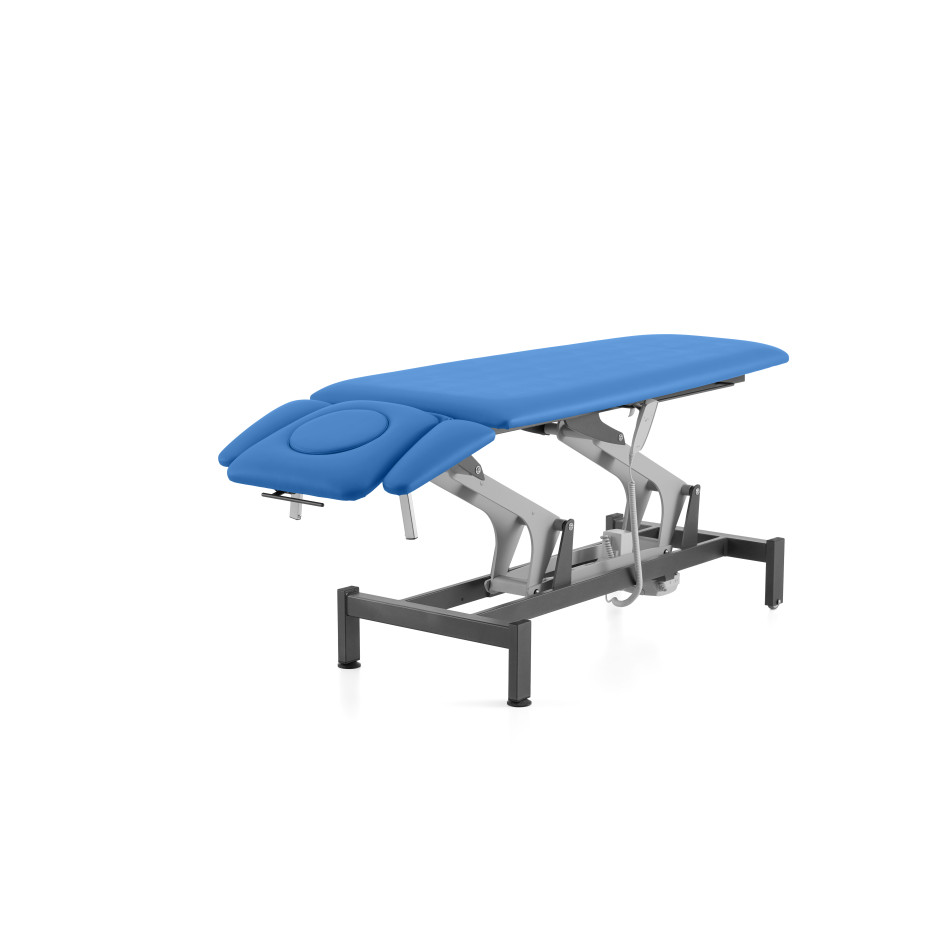

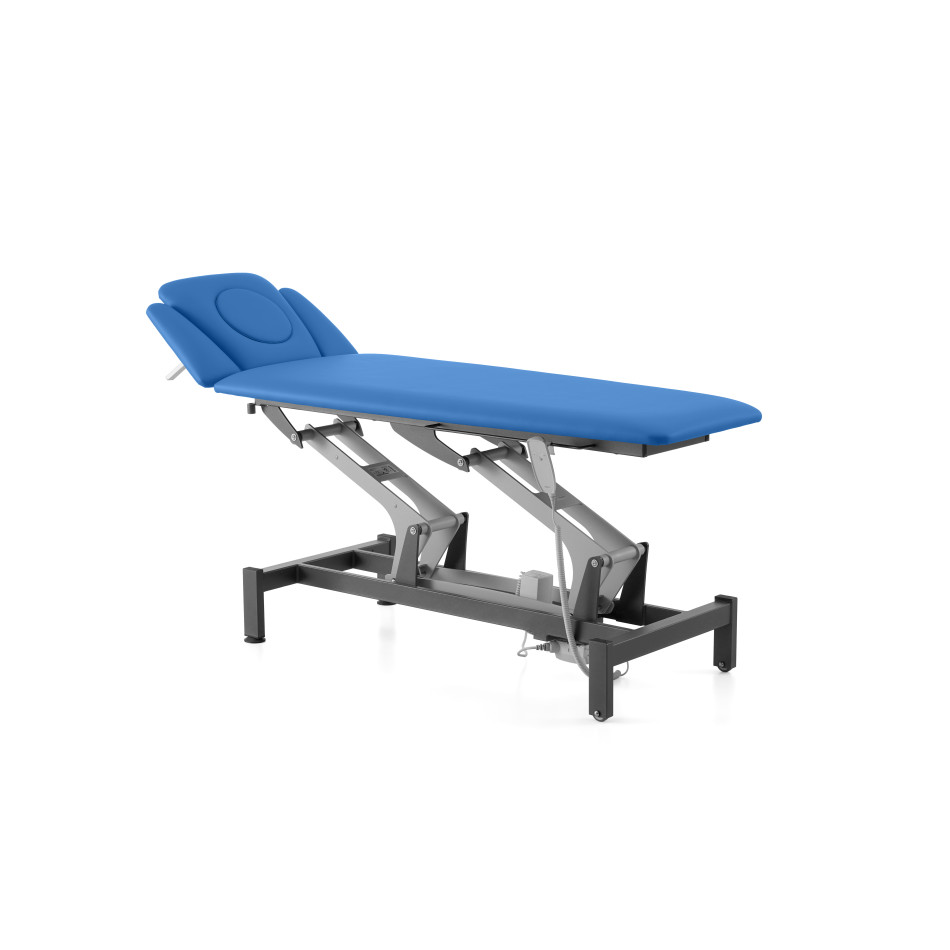

The Elemental Ice S4 is a four-section rehabilitation and treatment table with electric height adjustment via a handheld remote control. It is equipped with the innovative SmartS4Arms system, which allows for smooth and screwless adjustment of the headrest sides through a sliding mechanism with a locking mechanism.

The height can be adjusted using the pressure of the palm of the hand and an automatic position lock prevents any unintentional movement of the sides of the headrest during therapy.

Producer: Meden-Inmed

Medical device: Medical component

Color:

F2 wheeling system:

Index: 01-STO-6804-002

Product photos on the website are for reference only. They may differ slightly from the actual product. Manufacturer hereby reserves the right to change design that would not disturb the principal functionality and safety requirements.

Elemental Ice S4 - Massage table

The Elemental Ice S4 massage table is designed for performing manual massage treatments to treat and alleviate traumas or disabilities by restoring or improving the function of massaged tissues, organs and systems.

The clinical benefits of massage tables are based on the fact that it is possible for the patient to take the right position for the massage treatment, the possibility to adjust the height and/or individual sections of the table, which facilitates the work of the rehabilitator/physiotherapist and increases the comfort of the patient during the massage treatment.

Elemental Ice S4 - Massage table by Meden-Inmed is appreciated by therapists all over the world.

Elemental Ice S4 - Massage table
Elemental Ice S4 - Massage table

Features:

4-section massage table.

Adjustable head, leg section with gas springs.

Round face hole in the head section with 2 removable face hole covers (crescent, round).

2 side brackets for the fixation of stabilization belts

Electric height adjustment: 48-96 cm via hand-operated remote controller (with authorization) or foot controller to choose in standard

High/low height adjustment foot bar accessible from each side of the table - option (replaces remote controller).

Maximum lifting capacity up to 180kg.

Maximum working load up to 250kg.

Locking safety system on the remote controller.

SmartS4Arms Technology

Innovative SmartS4Arms system for smooth, screwless adjustment of the headrest sides, based on a sliding and locking mechanism. The automatic position lock prevents any unwanted movement of the headrest sides during therapy.

Types of base

Massage tables from Elemental Series are equipped with two types of wheeling systems. You can choose between 2 small wheels with rubber feet or add the integrated F2 mechanism, which adds two additional wheels for increased maneuverability and seamless transport.

F0 - Wheeling system

F0 - Wheeling system

Constructed with durable materials, the Elemental Table is equipped with 2 legs featuring rubber feet and 2 small wheels, facilitating effortless relocation by lifting from one side. This feature-rich system is ideally suited for users who only occasionally need to move their Elemental Table, ensuring both stability and convenience in its use.

F0+F2 - Wheeling system

F0+F2 - Wheeling system

The innovative design of the massage table ensures stability and ease of movement thanks to the combination of two small wheels and two sturdy feet. The integrated F2 mechanism, consisting of two casters, enhances maneuverability and allows seamless transport and positioning of the table in various therapy settings.

Elemental Series

A unique experience for your patients

For the patient, comfort during the treatment is as important as the results. With the Elemental Series of massage tables, you can guarantee your patients comfort and a sense of security during the therapy!

The Elemental Series massage table features:

Two-layer padding (3 cm foam 90 kg/cm3 + 1 cm foam 43 kg/cm3).

Stitched upholstery

Rubber feet with 1 cm height adjustment allowing for the levelling of the table

High-quality, soft upholstery in a wide variety of colors

Elemental Ice S4 - Massage table

Upholstery in Elemental Series

Choose the color most suitable for your office. The upholstery material is waterproof, antibacterial and easy to clean.

Temperature resistant

The two-layer upholstery of the Elemental Fire S3 massage table is resistant to high temperatures.

Liquid resistant

The top material of the Elemental Fire S3 massage table is resistant to liquids (water, blood, brine).

Comfortable surface

The Elemental Fire S3 massage table is covered with a soft, flexible and comfortable coating.

Scratch resistant

The two-layer upholstery of the Elemental Fire S3 features a scratch-resistant structure.

Technical specification:

Upholstery: eco leather
Highest quality and functionality

Liquid (water, blood) resistant
High temp. resistatnt
Soft, elastic and comfortable
Scratch resistant
Easy to clean

00 - Ecru

01 - Beige

02 - Blue

03 - Navy Blue

04 - Terracotta

05 - Brown

06 - Grey

07 - Graphite

08 - Black

09 - Red

11 - Honey

12 - Sea Green

13 - Orange

14 - Lime

15 - Light Blue

Update: 12-11-2024, time 13:23

Technical data

  • Type of table: Rehabilitation table
  • Number of sections: 4
  • Wheeling system: F0
    F2
  • Pivot: No
  • Length [cm]: 202
  • Width [cm]: 69
  • Height [cm]: 48-96
  • Weight [kg]: 82
  • Max. lifting capacity [kg]: 180
  • Max. working load [kg]: 250
  • Power supply [V / Hz]: 230 / 60
  • Warranty: 24 months
  • Medical device: Yes
