The Levitop Comfort lift makes it easier to lift and transport patients with disabilities and reduced mobility.

Producer: Meden-Inmed

Medical device: Medical component

Index: 01-WPP-0110-001

Product photos on the website are for reference only. They may differ slightly from the actual product. Manufacturer hereby reserves the right to change design that would not disturb the principal functionality and safety requirements.

Levitop Standard - Mobile patient lift

Levitop Comfort - Mobile patient lift

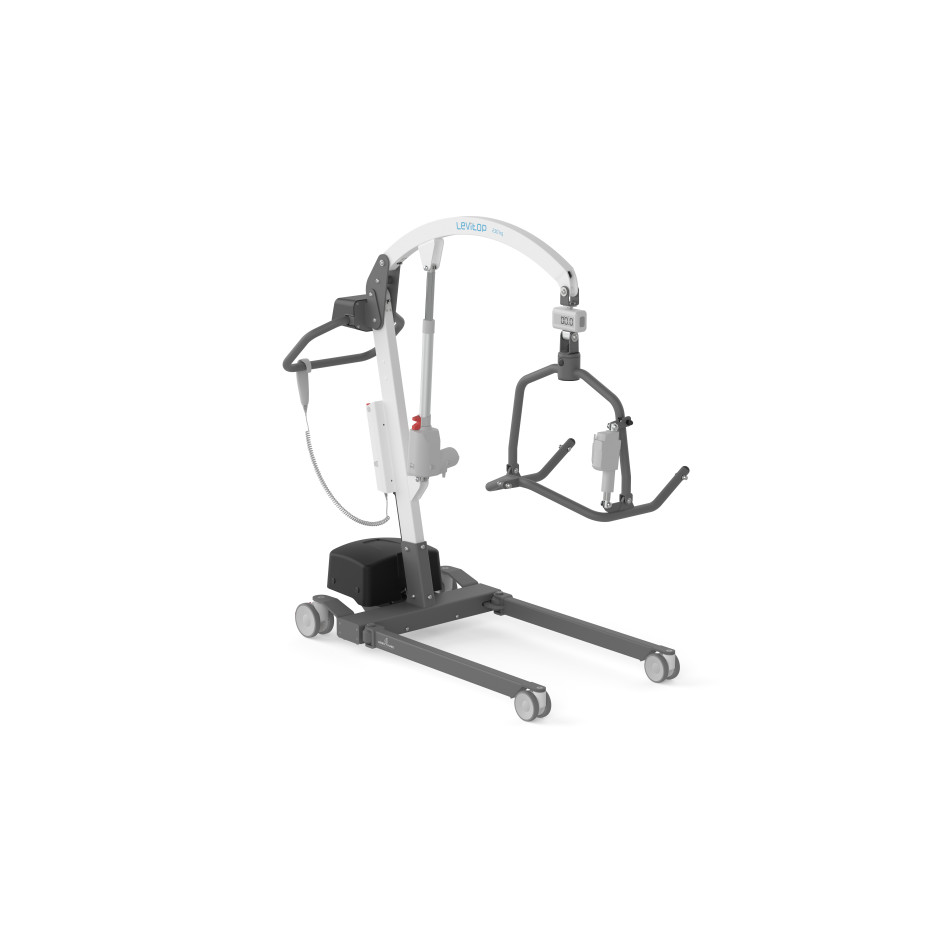

The Levitop Comfort Lift is a mobile lift designed to assist in lifting and transporting people with reduced mobility due to illness or dysfunction. It can be used to lift patients from a rehabilitation bed, bathtub, shower tray, or even directly from the floor with a suitable suspension.

The battery has a large capacity, allowing for approximately 20 full lifting and lowering cycles on a single charge with a maximum load of 230 kg.

Levitop Comfort - Mobile patient lift
Levitop Comfort - Mobile patient lift

Features:

The lift is equipped with a four-point sling as standard,

the sling rotates 360o with the possibility of locking in four positions (90o),

wheels allowing maneuvering even in small and narrow spaces,

rear wheels equipped with a brake,

Remote control included,

adjustment of the width of the leg span with the remote control,

emergency lowering mechanism to increase patient safety.

Levitop Comfort will be an excellent choice for:

Hospital

Hospital

Developed for use in hospitals, the innovative Levitop Comfort mobile patient lift is an indispensable tool to support the patient care process. The use of this advanced device brings numerous benefits to both medical personnel and patients.

Care home

Care home

Levitop Comfort - Mobile patient lift is an invaluable aid for medical staff and patients in the sanatorium environment. With its advanced features and ergonomic design, it enables effective and safe movement of people with various health needs in rehabilitation therapy.

Private usage

Private usage

Levitop Comfort - Mobile patient lift is an indispensable tool for home use, providing support and safety during daily activities. Thanks to its use, it is possible to effectively and comfortably lift and move people with limited mobility.

Sanatorium

Sanatorium

Levitop Comfort - Mobile patient lift is an invaluable aid for medical staff and patients in the sanatorium environment. With its advanced features and ergonomic design, it enables effective and safe movement of people with various health needs in rehabilitation therapy.

Levitop Comfort - Mobile patient lift
VertiUp eFlow

VertiUp eFlow drive system

It consists of two main parts: the drive system and the steering handle. The drive wheel is located between the two castors at the bottom of the lift. The steering handle mimics the operator's movements thanks to built-in sensors. The drive system, powered by LINAK's lithium-ion battery, drives the lift with minimal effort. The drive system allows the lift to be moved in any direction with minimal effort. As a result, control of the lift is intuitive and independent of the weight of the patient and the lift itself.

Very sensitive sensors ensure that the lift moves smoothly and is easy to manoeuvre in tight spaces. If the hand is removed from the handle (control rail), the built-in electromagnetic brake stops the unit in a short time.

Advatages of Levitop Comfort

Levitop Comfort - Mobile patient lift

Sling strap

Rotatable 360°

Levitop Comfort - Mobile patient lift

Strong construction

Frame made of durable metal

Levitop Comfort - Mobile patient lift

Robust suspension attachment

For lifting arms

Levitop Comfort - Mobile patient lift

Remote controller

Ergonomic and easy to use

Levitop Comfort - Mobile patient lift

Braked wheels

Brakes in the rear wheels prevent the unit from moving during use

Levitop Comfort - Mobile patient lift

Suspension lock

Blocking the rotation of the beam

Lifteo MLA - Mobile patient lift

Universal

  • Head support: yes
  • Material: polyester
  • Sizes: M, L, XL, bariatric
  • Lifting capacity: 318 kg / 454 kg
  • Attachment: loops
Lifteo MLA - Mobile patient lift

Bath & Toilet

  • Head support: yes
  • Material: polyester mesh
  • Sizes: M, L, XL
  • Lifting capacity: 250 kg
  • Attachment: loops
Lifteo MLA - Mobile patient lift

Bath & Toilet

  • Head support: no
  • Material: polyester mesh
  • Sizes: M, L, XL
  • Lifting capacity: 250 kg
  • Attachment: clips

Technical data:

Base legs spreading: electrical
Max. safe working load (SWL)[kg]: 230
Lenght [cm]: 130
Width [cm]: 67
Height [cm]: 135
Lifting range [cm]: 68 - 196
Min. turning diameter [cm]: 144
Min. base legs width (int./ext.) [cm]: 52 / 67
Max. base legs width (int./ext.) [cm]: 103 / 118
Base legs height [cm]: 11,5
Wheels diameter (without / with lock) [cm]: 10 / 12,5
Weight [kg]: 66
Battery capacity [Ah]: 2,9
Charger (integrated with control box) [V/Hz]: 100-240 / 50 / 60
Remote control functions:
  • up / down
  • el. leg spread: outside / inside
  • overload indicator
  • battery charge status
  • service indicator
Lifting speed (raising / lowering) [s]: 36 / 34
Packed dimensions (L x W x H) [cm]: 150 x 80 x 155
